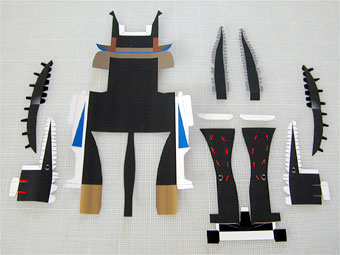

rear tray - Parts: a2, a3, a5, a16, a19, a20, a22, a23, b18, b19 : Prepare floor and undertray parts, cut out red slots ( ! ).

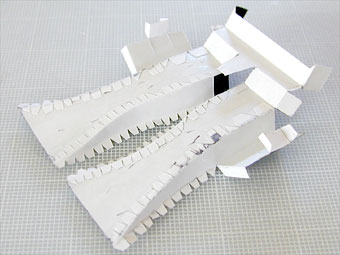

rear tray - build undertray up from a2, adding outer sides a19, a20 and inners a3 and a16.

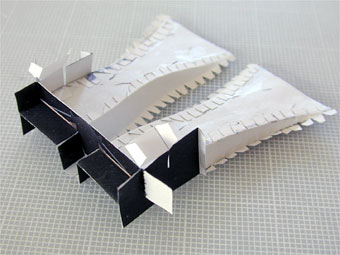

rear tray - Rear crossbeam will need to fit into slots on outer tray sides.

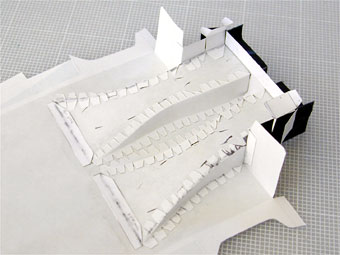

rear tray - Mount undertray to floor using backing tabs a22 and a23. Fold up wheelwell panels and glue to tabs on tray sides.

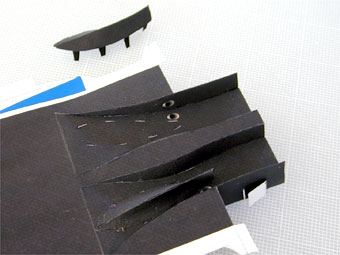

rear tray - add diffuser vanes b18 (L) and b19 (R).

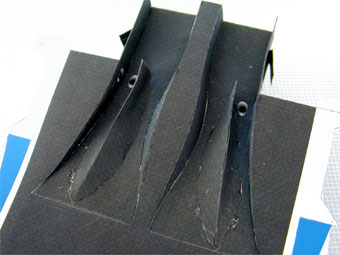

rear tray - Completed undertray vanes.

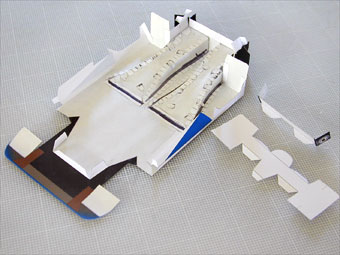

rear box - prepare final rear box parts b1 and b28.

rear box - Bulkhead b1 and rear box cross-beam b28 assembled. Fold small flaps of tray sides down inside rear box between the bulkheads.
