Prototyp : Construct : XJR-11 - Easy Version

Tub + Undertray Tub + Undertray   Floor + Chassis   |   Bodywork   Details   |   Wheels + Tires  |   Finished!

tub - Parts: b1, b2, b3, b4, b5, b6, a10 : Prepare tub parts, cut out red slots.

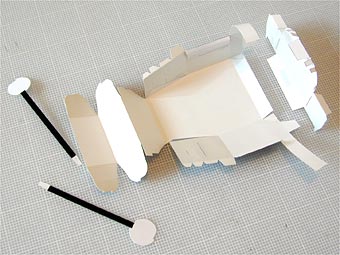

tub - Build tub b1, b4 and wheel hubs a10.

tub - Attach bulkheads b2, b3, b5, b6. Insert wheel hubs a10 through slots.

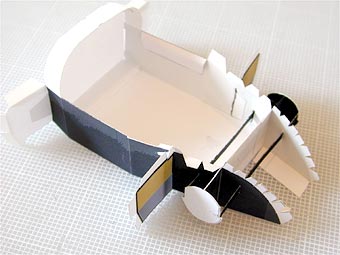

tub - Completed tub assembly.

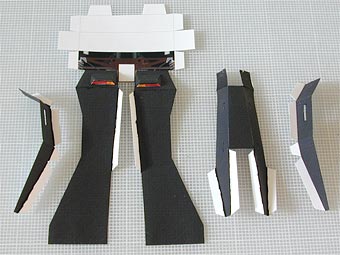

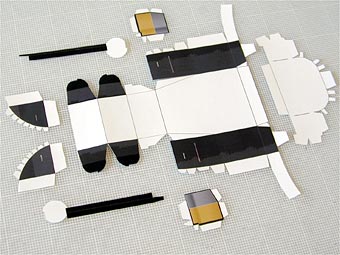

undertray - Parts: a1, a2, a3, a5, a6, a9 : Prepare parts, cut out red slots.

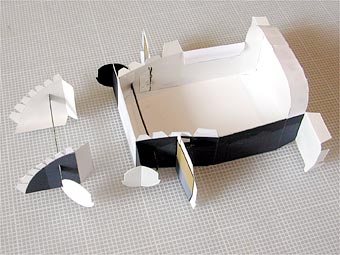

undertray - Attach taillights a5 and a6 to tray a1. Build parts a2, a3, a9.

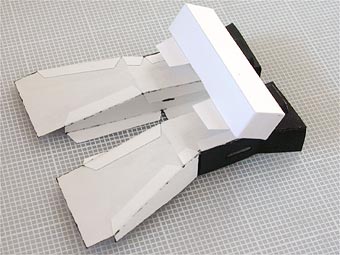

undertray - Assembled undertray parts.

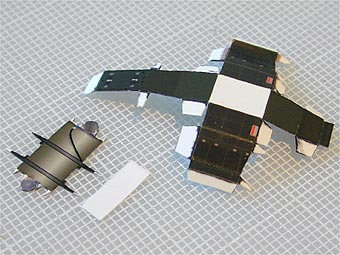

undertray - Build rear wheel box.

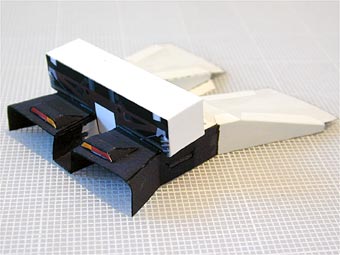

undertray - Completed undertray. Leave wheelbox tabs un-glued until step 6 of floor assembly.

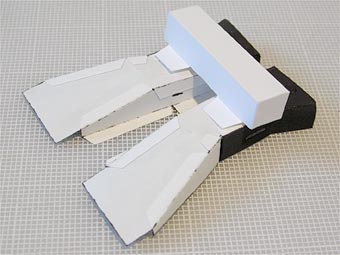

undertray - Completed undertray

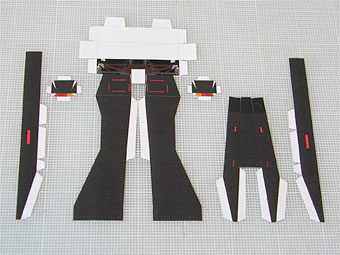

undertray - Parts: b12, c9, c25 : prepare the transmission parts, cut out red slots.

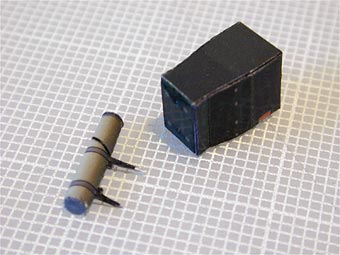

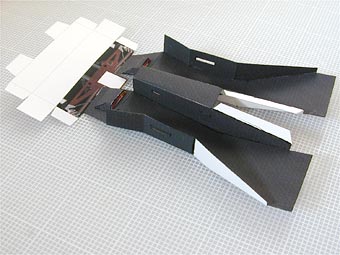

undertray - Completed transmission parts. Touch up edges with ink, marker or paint.
