Prototyp : Model : Jaguar XJR-10 / 11
Process, Part Three.
Introduction - 1 2 3

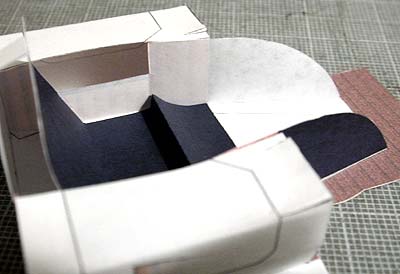

The sidepod/floor/bulkhead and the core tub sheets are test built. Corrections are noted and made to the parts sheets; tabs may need to be moved or modified, some bits may have been accidentally left off...

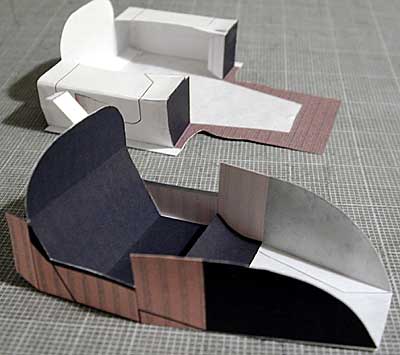

The core tub and sidepods now assembled.

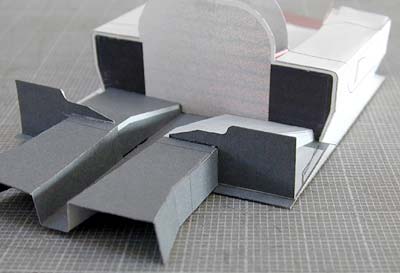

The undertray built and attached. It is a bit droopy, but this may be aleviated when the engine and it's crossmembers are added. There appears to be some distortion happening around the front bulkheads and the rear bulkhead surface still needs to be designed.



Revising and refining > >
