Prototyp : Model : Jaguar XJR-10 / 11
Process, Part four.
Introduction - 1 2 3

A fresh tub is built up from the parts revised in part three.

The nose skin and front radiator structures are built and attached along with new door box parts, designed primarily to support the outer side bodywork but also to lend some ridgidity to the tub and realism to the model.

top floorplan

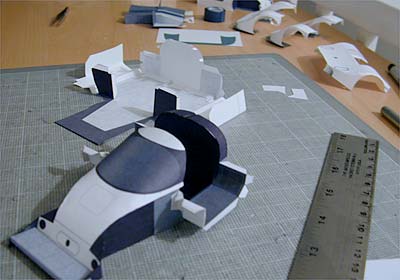

Core tub and fresh sidepods ready to be assembled.

top floorplan

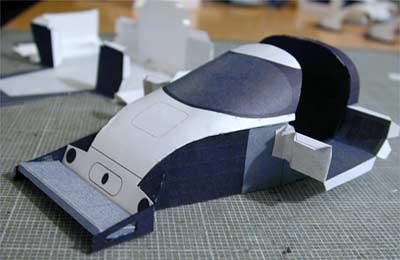

The completed core tub is glued into the undertray/bulkhead/side boxes assembly.

top outline

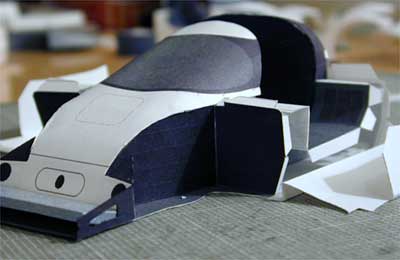

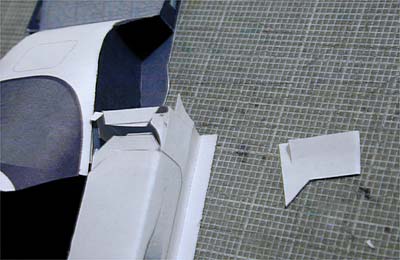

Side bodywork is then folded up and glued to the core chassis' tabs. Here the final small exterior fender part is waiting to be attached.

top outline
