Prototyp : Construct : MkIII - Easy Version

Details Rear Undertray   Front Splitter + Chassis   |   Bodywork   Details   |   Wheels + Tires  |   Finished!

mirrors and wiper - Parts: a11, a12, c19, c20, c26. Prepare detail parts.

mirrors and wiper - Build and attach mirrors and wiper.

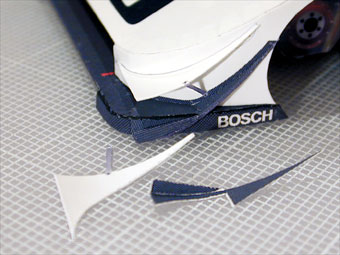

front dive planes - Parts: b7, b8, c3, c4. Mount dive plane to edge of nose; Right side - b8 and c3 / Left side - b7 and c4.

front dive planes - Completed front details.

rear vents - Parts: c12, c23, c28, c29, : Prepare vent parts. Attach vent sides to bodywork, then vent slats.

rear vents - Completed rear vents. Attach rear side panels c10, c11.

wing - Parts: d8, d9, d12, d18, d19, d20 : Prepare wing parts, cut out red slots.

wing - Build wing starting with mounting lower wing d18 to struts d5. Use a small round object to form the wing profiles.

wing - Insert endplates d8 and d9 onto completed wings. Ensure wings are aligned and parallel. Glue tabs into endplates and finish.

wing - Completed wing.

transmission - Parts: a17, c5, c8, d6, d13. Build transmission and rear suspension.

transmission - Attach transmission to chassis then suspension arms (insert leading arms through slots in undertray). Attach wing to transmission supports.
